Vacuum degassing pump
is a MUST tool for moldmaking
Vacuum degassing machine
Vacuum pump & Vacuum Chamber kit
Vacuum Pump features
1. Anti-oil design
The air intake channel is specially designed to prevent the pump from returning to the pump and the pumped
2. Environmental design
The tank is treated as a compartment and the oil and gas separation device is installed on the exhaust port, no oil is injected and oil mist pollution is reduced
3. Aluminum alloy housing
Vacuum pump motor with aluminum alloy shell, with high heat efficiency efficiency, to ensure long continuous continuous operation, and has a good appearance quality
4. Integral design
With the pump with a holistic design, the product is more compact and lightweight
5. Large starting torque
This product is specially designed for low temperature environment, to ensure that the normal winter temperature in the case of normal start
6. Use shock-resistant rubber feet, reduce vibration and noise.Vacuum Chamber features
1. High strength stainless steel container (Wall thickness 1.1mm) Hydro Tested and Sealed for Leaks
2. 18mm thick clear acrylic lid (Extra thick, does not deflect under vacuum))
3. Heat cured silicone gasket chemically resistant to solvents (Temp rated to 400F)
4. Brass polypropylene ball valves. (Temp rated to 200F)
5. Glycerin filled Industrial Vacuum Gauge (Shock resistant for shipping and accurate to within 0.5inHg)
6. Steel wire reinforced vacuum hose (collapse proof)
7. Brass vacuum pump fitting. (Universally fits all vacuum pump ports, custom designed with an inside pitch of 37.5 Degrees to fit pumps with 32-45 Degree Flare ports)Size available: (Diameter*Height)
6L =200MM*200MM
12L =250MM*250MM
17L =280MM*280MM
27L =280MM*450MM

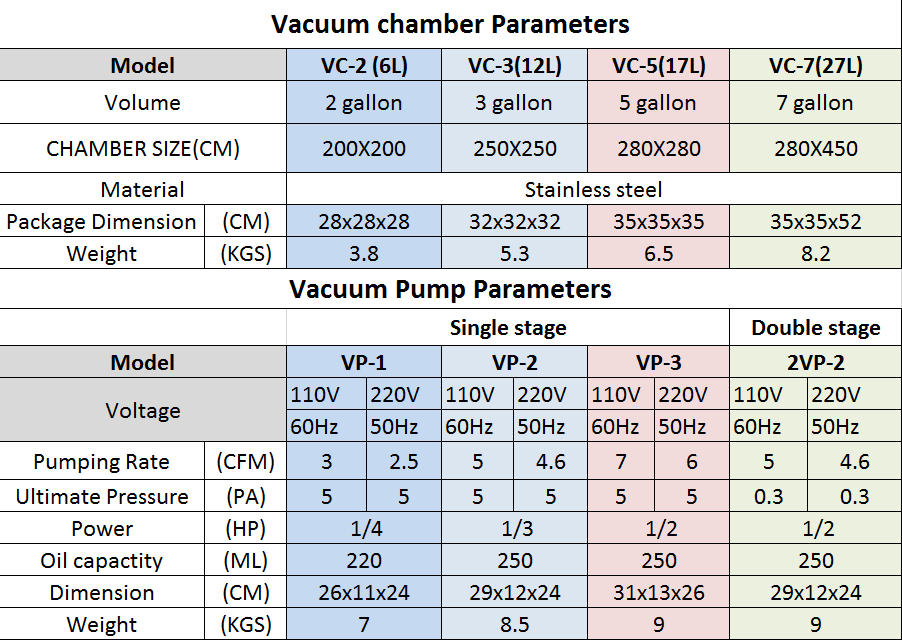

Vacuum degassing machine parameters
6L Kit= VC-2 chamber + VP-1 Pump
12L Kit= VC-3 chamber + VP-2 Pump
17L Kit= VC-5 chamber + VP-3 Pump
27L Kit= VC-7 chamber + 2VP-2 Pump
Kit content
1,Vacuum Chamber: stainless steel, with welded handles
2,Lid: Acrylic Lid
3,Vacuum Gasket: silicone, resistant to Butane and other solvents.
4,Vacuum Gauge Assembly: 0.5 inHg accuracy.
5,Valve Assembly: very high quality air-tight brass valves, with 50um filter on vent port.6,Vacuum Hose: 1.5 meter food grade collapse-proof silicone hose.
7,Vacuum pump: 1 Set8,Vacuum oil: 1 Bottle
9,Manual: 1 paperNeed the wholesale price?
Contact us Now!
Inquiry for the latest price
